Features
- By winding a fin in a coil form (helically) around a straight heater, the heat efficiency has been further improved due to the increased heat release area.
- Heaters of this type are durable, and best suited for heating gas.
Specification
Configure of standard types
- Iron coating with heat-resistant silver powder is used for the sheath and fin materials.
- Mounting hardware for the heaters is also available.
Specification
All products listed are available in different voltages.
| Model | Voltage | Wattage | L | A | B | φD | Sheath diameter | Product code | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 100V | 115V | 200V | ||||||||
| F-1 | 100/115/200V | 300W | 270mm | 210mm | 30mm | φ28 | φ12 | F1100 | F1115 | F1200 |
| F-2 | 100/115/200V | 300W | 450mm | 390mm | 30mm | φ28 | φ12 | F2100 | F2115 | F2200 |
| F-3 | 100/115/200V | 500W | 300mm | 240mm | 30mm | φ28 | φ12 | F3100 | F3115 | F3200 |
| F-4 | 100/115/200V | 500W | 340mm | 280mm | 30mm | φ28 | φ12 | F4100 | F4115 | F4200 |
| F-5 | 100/115/200V | 500W | 500mm | 440mm | 30mm | φ28 | φ12 | F5100 | F5115 | F5200 |
| F-6 | 100/115/200V | 750W | 390mm | 330mm | 30mm | φ28 | φ12 | F6100 | F6115 | F6200 |
| F-7 | 100/115/200V | 750W | 650mm | 590mm | 30mm | φ28 | φ12 | F7100 | F7115 | F7200 |
| F-8 | 100/115/200V | 1000W | 570mm | 510mm | 30mm | φ28 | φ12 | F8100 | F8115 | F8200 |
| F-9 | 100/115/200V | 1000W | 950mm | 890mm | 30mm | φ28 | φ12 | *FX | F9115 | F9200 |
| F-10 | 100/115/200V | 333W | 270mm | 210mm | 30mm | φ28 | φ12 | F10100 | F10115 | F10200 |
| F-11 | 100/115/200V | 333W | 450mm | 390mm | 30mm | φ28 | φ12 | F11100 | F11115 | F11200 |
| F-12 | 100/115/200V | 667W | 360mm | 300mm | 30mm | φ28 | φ12 | F12100 | F12115 | F12200 |
| F-13 | 100/115/200V | 667W | 600mm | 540mm | 30mm | φ28 | φ12 | F13100 | F13115 | F13200 |
| F-14 | 100/115/200V | 833W | 480mm | 420mm | 30mm | φ28 | φ12 | F14100 | F14115 | F14200 |
| F-15 | 100/115/200V | 833W | 800mm | 740mm | 30mm | φ28 | φ12 | *FX | *FX | *FX |
| F-16 | 100/115/200V | 1330W | 750mm | 690mm | 30mm | φ28 | φ12 | *FX | *FX | *FX |
| F-17 | 100/115/200V | 1330W | 1000mm | 940mm | 30mm | φ28 | φ12 | *FX | *FX | *FX |
| F-18 | 100/115/200V | 1660W | 710mm | 650mm | 30mm | φ28 | φ12 | *FX | *FX | *FX |
| F-19 | 100/115/200V | 1660W | 1250mm | 1190mm | 30mm | φ28 | φ12 | *FX | *FX | *FX |
| F-20 | 100/115/200V | 2000W | 950mm | 890mm | 30mm | φ28 | φ12 | *FX | *FX | *FX |
| F-21 | 100/115/200V | 2000W | 1380mm | 1320mm | 30mm | φ28 | φ12 | *FX | *FX | *FX |
| F-22 | 200V | 3300W | 1250mm | 1190mm | 30mm | φ28 | φ12 | *FX | *FX | *FX |
| F-23 | 200V | 3300W | 1450mm | 1390mm | 30mm | φ28 | φ12 | *FX | *FX | *FX |
| F-24 | 200V | 5000W | 1750mm | 1690mm | 30mm | φ31 | φ15 | *FX | *FX | *FX |
| F-25 | 200V | 5000W | 2200mm | 2140mm | 30mm | φ31 | φ15 | *FX | *FX | *FX |
* FX（Made-to-Order）
* Note that the allowable current of available heaters is 25 A or less.

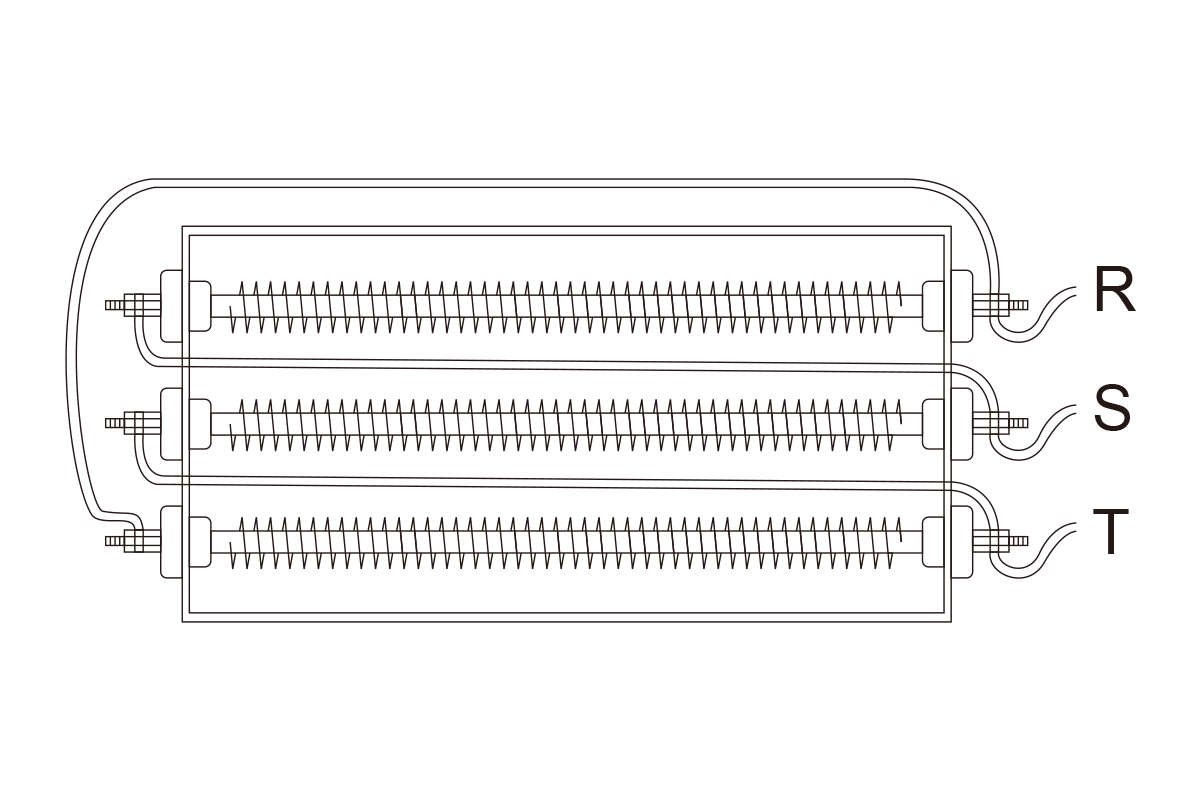

How to connect the wires
When using your heater, at 200 V, connect the wires using one of the connecting methods shown below.
(Heaters constructed from stainless steel are also available.)
Y connection
(Star connection)
Δ connection
(Star connection)
Series connection
Precautions when using this product
- This product is for industrial use only.
- Do not use the product without ventilation.
- Do not use the product at a voltage exceeding the rated voltage.
- Use the product in an atmosphere where the ambient temperature around the heater terminal does not exceed 150℃.
- The heater becomes hot during us and still hot immediately after power off. Never touch a hot heater with bare hands.
