Features
- 【High operating temperature】
This heater can be used at up to 300°C* - 【Fast response】
The thickness of the heater is as thin as 1.15 mm thanks to a thin insulator(silicone rubber) and the heat capacity is small, and therefore the heater features a fast temperature rise response to the object to be heated (work). - 【Many variations】
The heater can be optimally designed according to the shape of the object to be heated such as triangular, round, drilling, punching, cutting process, etc. - 【High thermal efficiency】
The foil-shaped heating element enables the heater to take up a larger heat generation area in the heater surface area, with minimum heating unevenness and high heat efficiency. - 【Excellent temperature uniformity】
The heating element pattern embedded in heater offers a high degree of design freedom and allows for the heater to partially apply coarse and dense patterns considering the temperature distribution of the object to be heated.
* This maximum temperature is based on the test data of our company and is not a guaranteed value.
* In order to ensure satisfactory usage at high temperature, our company will undertake special adhesive processing for the object to be heated. For details, please contact our sales representative.
Specification
| Heater surface temperature | Maximum operating temperature 300℃ (normally 250℃) Usable temperature varies according to the actual operating environment. |
|---|---|
| Capacity tolerance | W±10％ |
| Insulation resistance | 100 MΩ or more with a 500 VDC ohmmeter |
| Dielectric strength | 150V or less: 1000 VAC/min. Exceeding 150V: 1500 VAC/min. |
| Compressive load value (even) | 0.49Mpa (5kg/cm2) (Except for lead connections) |
| Thickness | 1.15mm (Except for terminal) |
| Lead length | 300L |
| Heater size limitations | 350 ✕ 2000 mm |
| Bending radius | 10R or more |
Configure of standard types
All products listed are available in different voltages.
| Size (Width × Length) |
Lead AWG | Lead length | Voltage | Wattage | Product code |
|---|---|---|---|---|---|
| W25 ✕ L130 mm | 22 | 300L | 100V | 65W | SSAM2105 |
| W25 ✕ L255 mm | 22 | 300L | 100V | 130W | SSAM2110 |
| W25 ✕ L380 mm | 22 | 300L | 100V | 190W | SSAM2115 |
| W25 ✕ L510 mm | 22 | 300L | 100V | 250W | SSAM2120 |
| W25 ✕ L630 mm | 18 | 300L | 100V | 300W | SSAM2125 |
| W50 ✕ L130 mm | 22 | 300L | 100V | 130W | SSAM2205 |
| W50 ✕ L255 mm | 22 | 300L | 100V | 250W | SSAM2210 |
| W75 ✕ L130 mm | 22 | 300L | 100V | 200W | SSAM2305 |
| W75 ✕ L255 mm | 18 | 300L | 100V | 380W | SSAM2310 |
| W100 ✕ L130 mm | 22 | 300L | 100V | 250W | SSAM2405 |
| W100 ✕ L255 mm | 18 | 300L | 100V | 500W | SSAM2410 |
| W130 ✕ L130 mm | 18 | 300L | 100V | 330W | SSAM2505 |
| W130 ✕ L255 mm | 16 | 300L | 100V | 660W | SSAM2510 |
| W150 ✕ L130 mm | 18 | 300L | 100V | 390W | SSAM2605 |
| W150 ✕ L255 mm | 16 | 300L | 100V | 760W | SSAM2610 |
| W150 ✕ L380 mm | 14 | 300L | 100V | 1100W | SSAM2615 |
| W150 ✕ L510 mm | 12 | 300L | 100V | 1500W | SSAM2620 |
* A dedicated adhesive is also available
* Color of the lead wire: yellow/white
Reference data

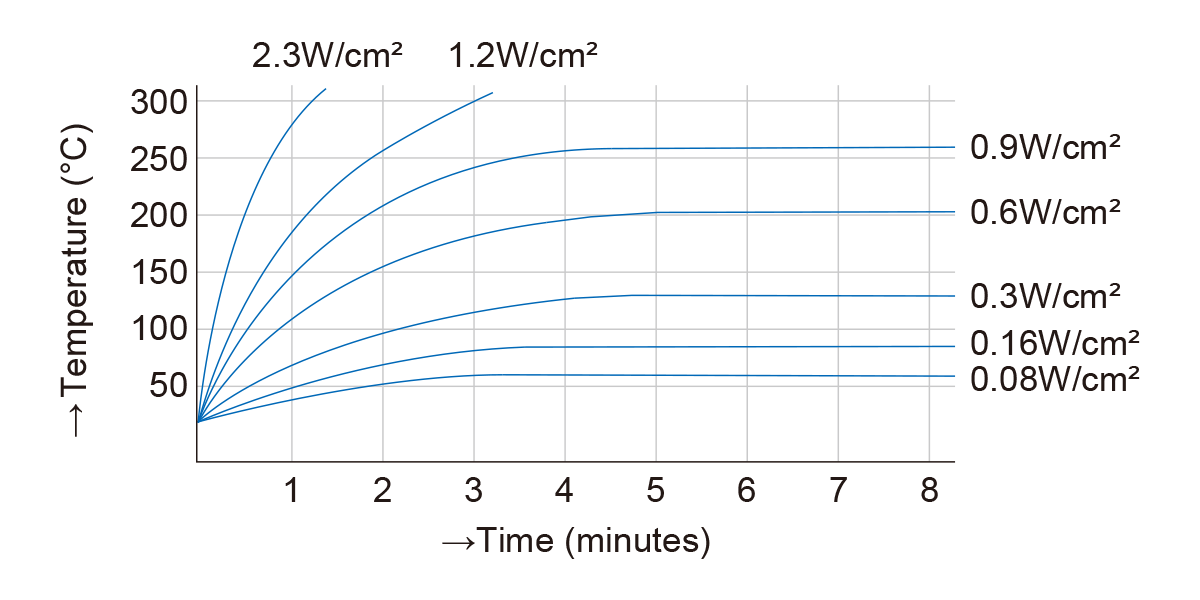

Saturation curve
Heater surface temperature when suspended in static air at normal temperature.
* This is a reference value because the heater temperature varies depending on the operating environment.
Precautions when using this product
- This product is for industrial use only.
- The product is intended for indoor use; it does not have a waterproof design. Keep the heater out of water and any solutions.
- Beware it may cause an abnormally high temperature and result in premature wire breakage if the contact with the heated object is poor.
- If using the heater sandwiched by metal blocks, contact our sales representative.
- Do not apply excessive external forces (tension, bending, etc.) to the lead wire joint.
- Do not place flammable material near the heater. It could result in a fire.
- Do not stack heaters on top of each other. It may cause an abnormally high temperature and result in premature wire breakage.
- Depending on the usage, use a voltage or temperature controller and perform temperature control with the surface temperature of the heater.
